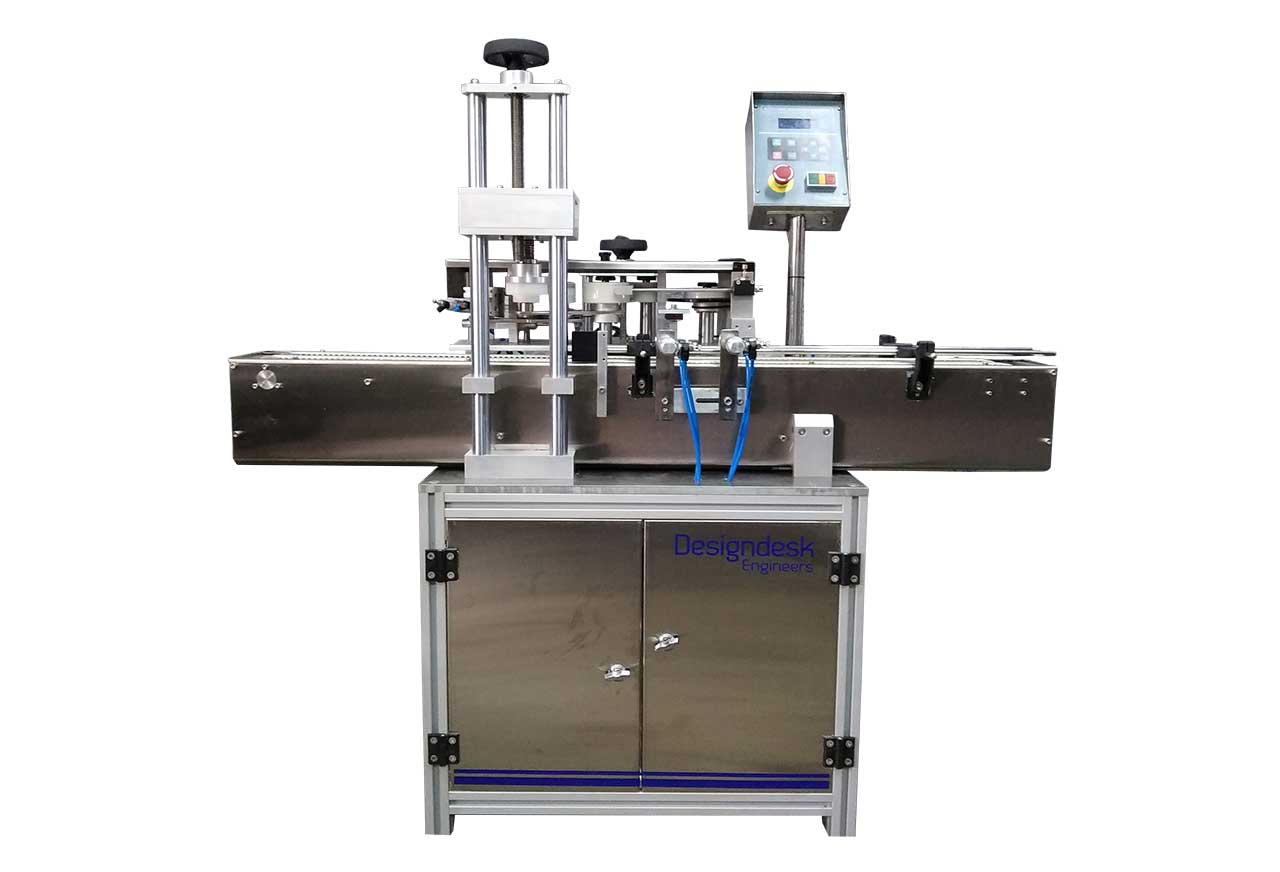

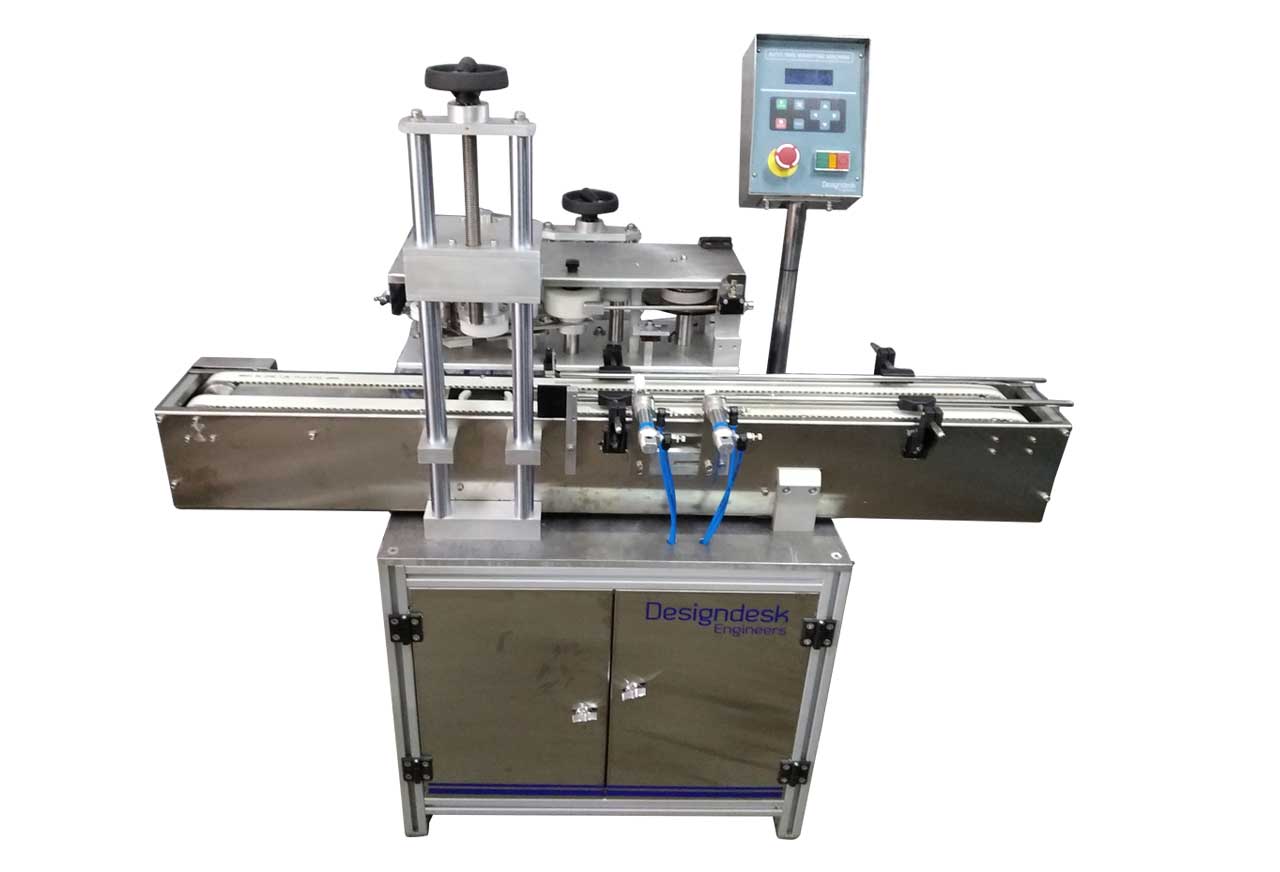

Our company manufacturers and suppliers of Tape Wrapping Machines, hologram applicator, which provides temporary seal for tin container and its cap.
This simple & efficient machine contains Conveyer timed with Tape dispenser and cutting mechanism in Mumbai, India.
Approx. length of the conveyor is about 1200-1500mm and width varies according to the product diameter. We have wide range of wrapping machine at resonable price. PVC / BOPP tape dispenser and cutting mechanism is controlled with Pneumatic cylinders.
Positioning of the product is maintained by stepper motor and pneumatic cylinders.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Max tape dia. | : | 200mm |
| Max container dia | : | Up to 250mm |
| Speed | : | Up to 20/ minute |
| Power Supply | : | 220v 50 Hz |
| Power Consumption | : | 600 Watts |
| Control System | : | Micro Controller/PLC based |
| Machine Size | : | 1500 X 700 X 1200mm |
| Weight | : | 300 kgs |
Download Catalogue
